13. Statics vs Dynamics.

2D. Equilibrium and dynamics of a point mass \(m\) at \(\vec{r}_{C}\). Gravity \(g\) points down in the minus \(\hat{j}\) direction. Points A and B are anchored at \(\vec{r}_A\) and \(\vec{r}_B\). Springs and parallel dashpots connect the mass to A and B. The spring constants are \(k_A\) and \(k_B\). Their rest lengths are \(L_A\) and \(L_B\). Parallel to the springs are dashpots \(c_A\) and \(c_B\). The mass also has a drag force proportional to speed through the air \(c_d\).

The dynamic state of the system is described with \(z = [x, y, \dot{x}, \dot{y}]'\) and the static state by \(z = [x, y, 0, 0]'\).

1. Basic Statics. Given parameters and an initial guess, find an equilibrium position of this system. If you have an example you like, post it and people can compare solutions.
2. Basic Dynamics. Given parameters and an initial condition, find the motion.
3. All equilibria. Given parameters, attempt to find all equilibria. How many are there? By varying parameters, what is the most and least number of equilibrium points there can be?
4. Stability of equilibrium. Given an equilibrium point, find it’s stability 2 ways: (a) With a dynamic simulation near the equilibrium; and (b) looking at the eigenvalues of the matrix describing the linearized equations of motion. Compare.

Make appropriate plots, animations and comparisons.

1 Basic Statics. Given parameters and an initial guess, find an equilibrium position of this system. If you have an example you like, post it and people can compare solutions.

In file ./FindEquilibrium/src/FindEquilibrium.jl:

module FindEquilibrium

import DifferentialEquations
import GLMakie

include("./Physics.jl")
include("Visualization.jl")

struct SpringParameters
    k::Float64          # constant
    l::Float64          # restlen
    r⃗₀::Vector{Float64} # anchor point
    c::Float64          # damp: dashpot
end

struct Parameters
    m::Float64
    g::Float64
    c_d::Float64
    spring1::SpringParameters
    spring2::SpringParameters
end

p = Parameters(
    (global m = 0.1),
    (global g = 0.1),
    (global c_d = 0.5),
    (global spring1 = SpringParameters(
        (global k1=2.0),
        (global l1=2.0),
        (global r⃗₁=[1.0, 0.0]),
        (global c1=1.0),
        )
    ),
    (global spring2 = SpringParameters(
        (global k2=1.0),
        (global l2=0.5),
        (global r⃗₂=[-1.0, -1.0]),
        (global c2=1.0),
        )
    ),
)

tspan = (
    (global tstart=0.0),
    (global tend=200.0)
)

u⃗₀ = [
    (global r0=[-1.0;1.0]);
    (global v0=[10.0;5.0]);
]

odefunc = Physics.twospringsdragdamped!
odeprob = DifferentialEquations.ODEProblem(
    odefunc,
    u⃗₀,
    tspan,
    p,
    )

Δt = 0.1

trajectory = GLMakie.Figure()
trajectory_lines = GLMakie.Axis(
    trajectory[1,1],
    title="Trajectory",
    aspect=GLMakie.DataAspect(),
)

i = [1.0;0.0]
j = [0.0;1.0]
N, n = 30, 5
Δr⃗₀s = (global ϵ=0.01)*[cos(θ)*i+sin(θ)*j for θ in range(0.0; step=2π/N, length=n)]

Δd = abs.(r⃗₁ - r⃗₂)
for x in range(min(r⃗₁[1], r⃗₂[1]) - Δd[1], max(r⃗₁[1], r⃗₂[1]) + Δd[2], length=N)
    for y in range(min(r⃗₁[2], r⃗₂[2]) - Δd[2], max(r⃗₁[2], r⃗₂[2]) + Δd[2], length=N)
        u⃗₀ = [
            [x;y];
            [0.0;0.0];
        ]
        for Δr⃗₀ in Δr⃗₀s
            u⃗₀_modified = u⃗₀ + [Δr⃗₀; Δr⃗₀]
            odeprob = DifferentialEquations.ODEProblem(
                odefunc,
                u⃗₀_modified,
                tspan,
                p,
            )
            sol = DifferentialEquations.solve(
                odeprob;
                # saveat=Δt,
                save_everystep=false,
                )
            # Visualization.plot_trajectory!(trajectory, sol)
            # Visualization.plot_start_end!(trajectory, sol)
            Visualization.plot_end!(trajectory, sol)
        end
    end
end
Visualization.plot_points!(trajectory, spring1.r⃗₀, spring2.r⃗₀)

end # module FindEquilibrium

Taking the average of the two clusters of end points for a grid of starting points gives us these equilibrium state.

[[-0.8, -0.49],[-0.6, -1.8]]

Note, The axis aspect are not equal.

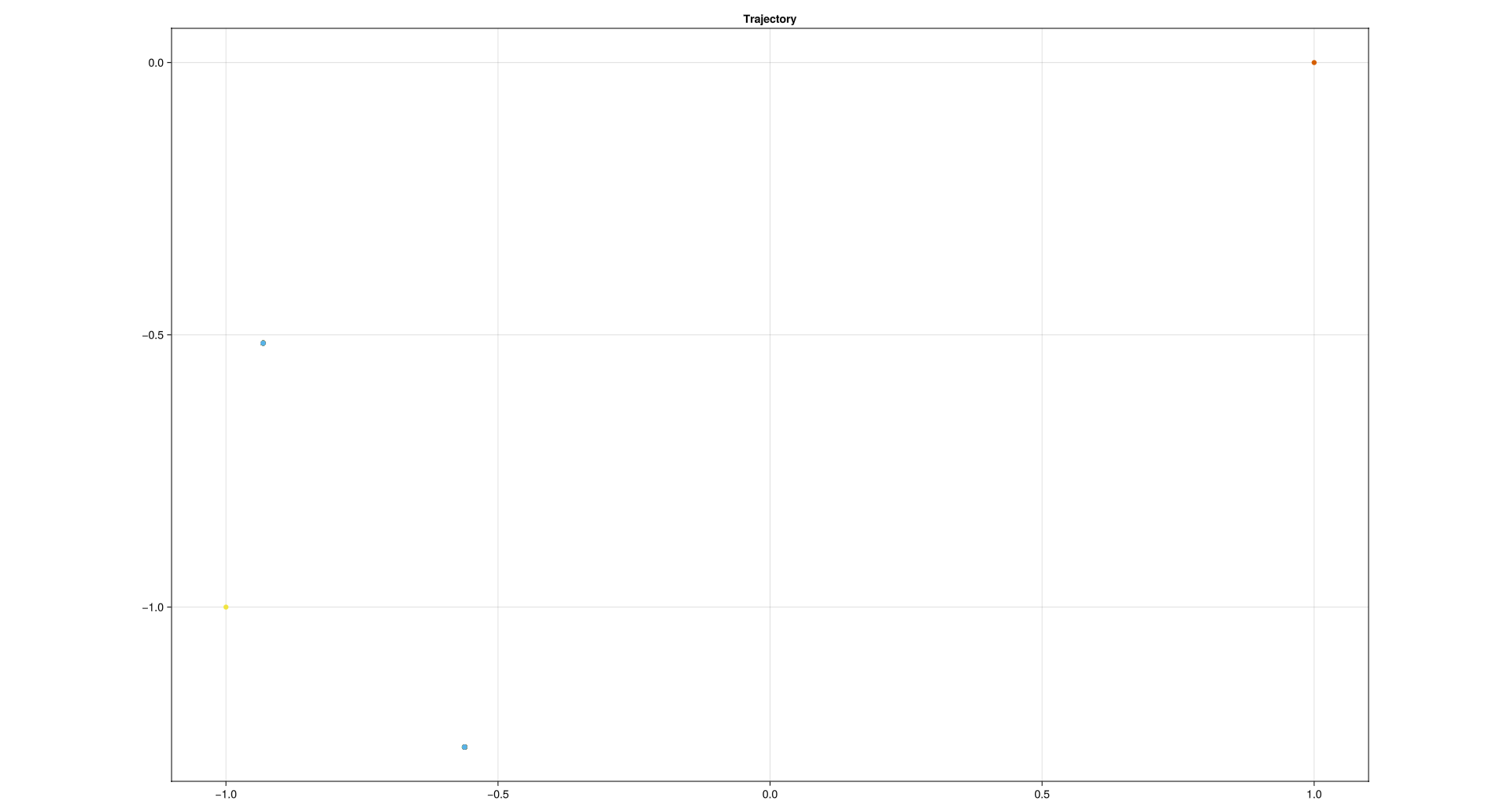

../../media/problem13/end-final-param-N-n-50-5-eps-0.001-c_d-0.5.png

Figure 1: Blue points are equilibriums, the other points are spring pivots

2 Basic Dynamics. Given parameters and an initial condition, find the motion.

In file ./FindEquilibrium/src/Physics.jl:

module Physics

import LinearAlgebra: norm, normalize, dot

function twospringsdragdamped!(du, u, p, t)
    m, g, c_d, spring1, spring2 = p.m, p.g, p.c_d, p.spring1, p.spring2

    r⃗ = u[1:2]
    v⃗ = u[3:4]
    a⃗ = begin
        gravity = begin
            j = [0.0;1.0]
            m*g*(-j)
        end
        drag = begin
            v = norm(v⃗)
            v̂ = v⃗/v
            (c_d*v)*(-v̂)
        end
        spring1 = begin
            spring = begin
                Δr⃗ = r⃗ - spring1.r⃗₀
                Δr = norm(Δr⃗)
                Δl = Δr - spring1.l
                Δr̂ = Δr⃗ / Δr
                (spring1.k*Δl)*(-Δr̂)
            end
            dashpot = begin
                r̂ = normalize(r⃗)
                (spring1.c*dot(v⃗, r̂))*(-r̂)
            end
            spring+dashpot
        end
        spring2 = begin
            spring = begin
                Δr⃗ = r⃗ - spring2.r⃗₀
                Δr = norm(Δr⃗)
                Δl = Δr - spring2.l
                Δr̂ = Δr⃗ / Δr
                (spring2.k*Δl)*(-Δr̂)
            end
            dashpot = begin
                r̂ = normalize(r⃗)
                (spring2.c*dot(v⃗, r̂))*(-r̂)
            end
            spring+dashpot
        end
        F = +gravity+drag+spring1+spring2
        F/m
    end

    du[1:2] = v⃗
    du[3:4] = a⃗
end

end # module Physics

../../media/problem13/trajectory.png

Figure 2: An example trajectory for the taken parameters

3 All equilibria. Given parameters, attempt to find all equilibria. How many are there? By varying parameters, what is the most and least number of equilibrium points there can be?

What I did essentially was to take many (about 300) intial position vectors in a grid around the and containing the anchor points. I tried various methods, but essentially all of the methods revolved around playing the simulation and noting the end point.

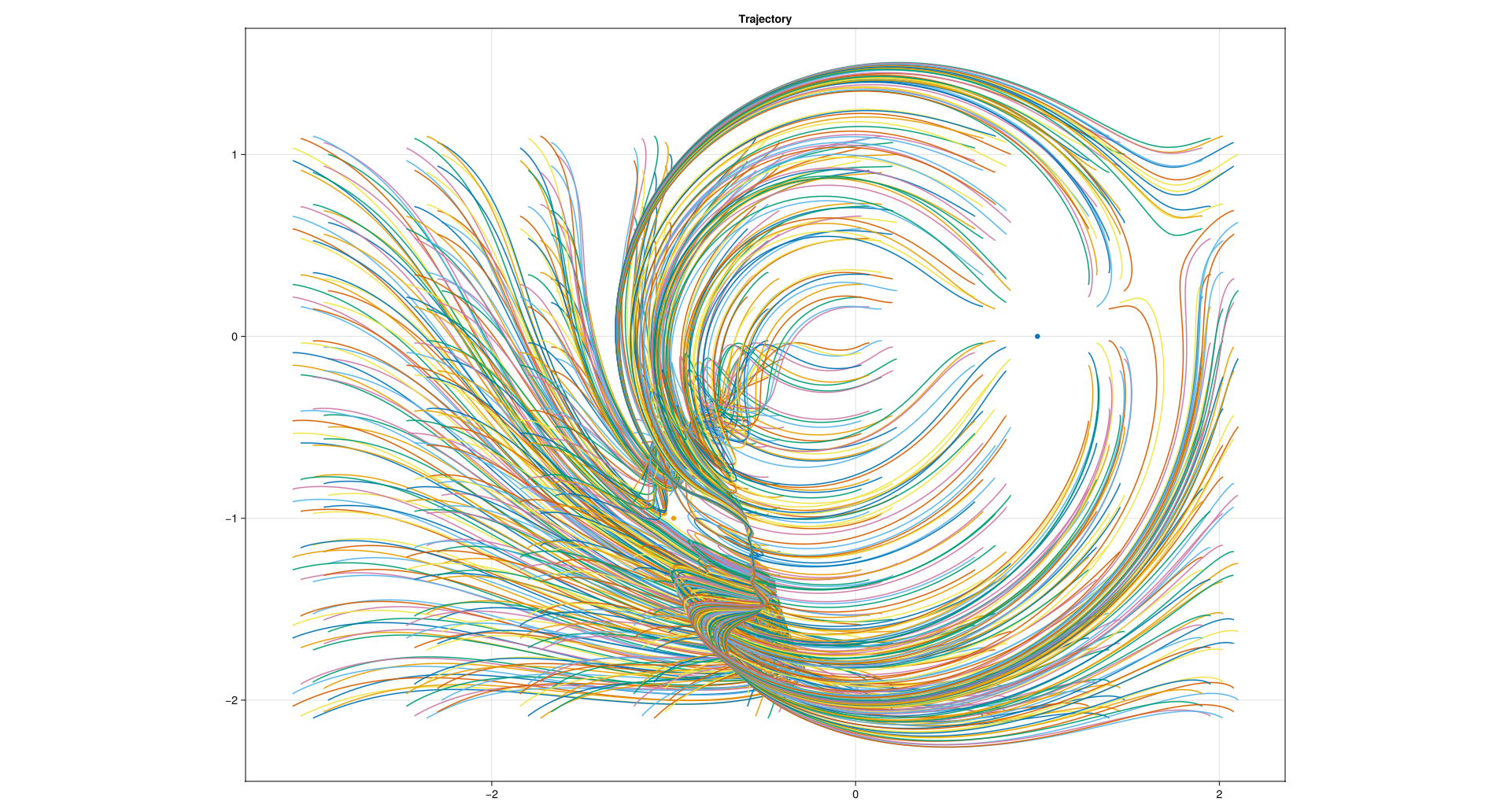

Figure 3: I call these Rubber Art

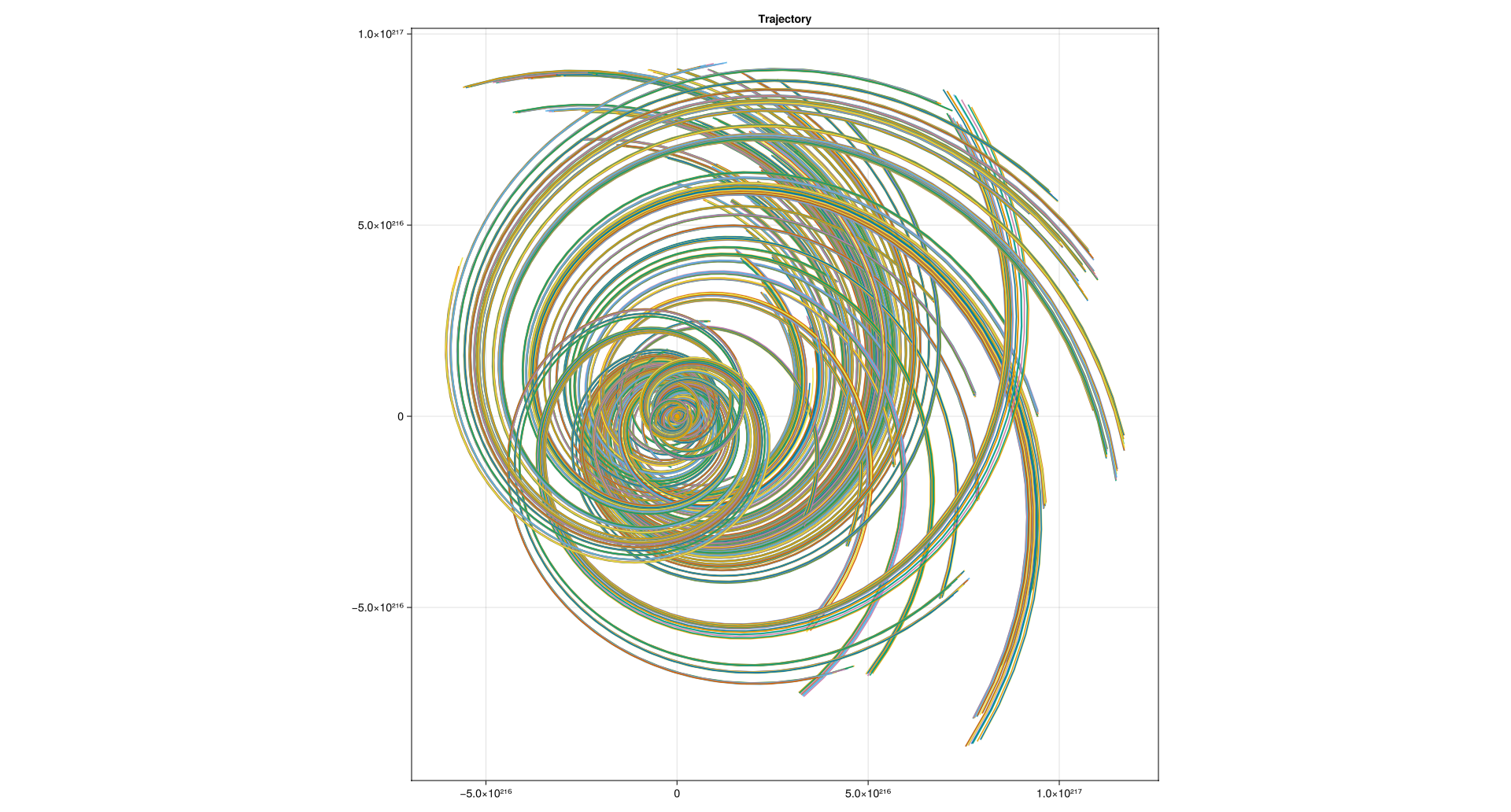

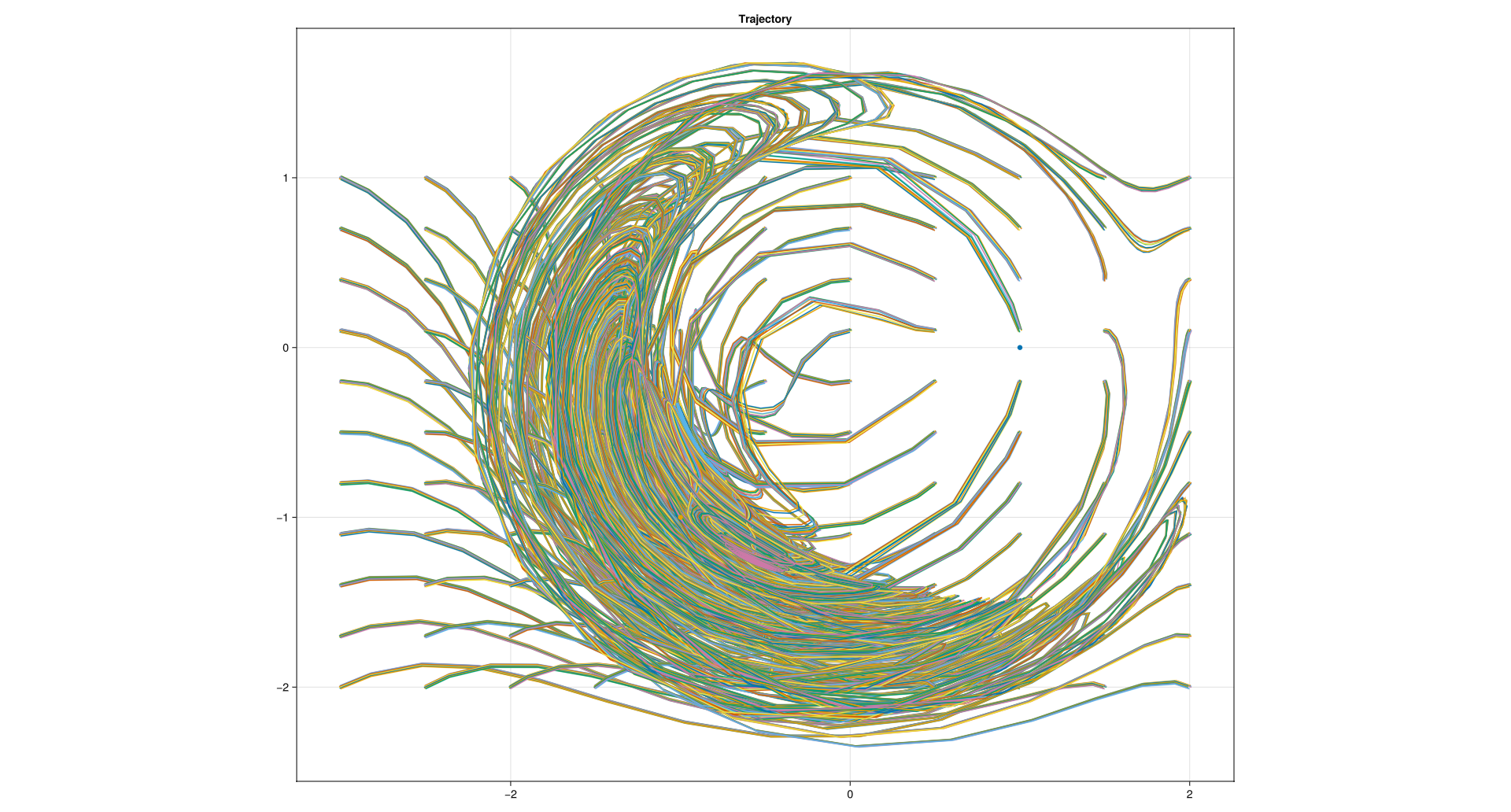

Figure 4: Trying to use a negative air drag

Figure 5: Finally, just looking at the start state and the end state:

4 Stability of equilibrium. Given an equilibrium point, find it’s stability 2 ways: (a) With a dynamic simulation near the equilibrium; and (b) looking at the eigenvalues of the matrix describing the linearized equations of motion. Compare.

I was only able to find stable equilibriums. I was not able to use “(b) looking at the eigenvalues of the matrix describing the linearized equations of motion.”

This concludes my attempt of problem13.
